1000VDC Fast Charger 300 Amp Bolt Type Fuse , High Voltage TUV Standard EV Fuse

Name: 1000VDC Fast Charger 300 Amp Bolt Type Fuse High Voltage TUV Standard EV Fuse
Brand: Dissmann
Price: 1 USD

Wholesale 1000VDC Fast Charger 300 Amp Bolt Type Fuse , High Voltage TUV Standard EV Fuse from china suppliers

Brand Name : Dissmann

Model Number : HEV-J-Q

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : TT/LC

Supply Ability : 1,000,000pcs

Delivery Time : 5-8days

Packaging Details : Standard Carton Packing

Material : glass fiber

Color : White

Rated Current : 5A-800A

Rated Voltage : DC/AC1000V

Type protection : aR

Breaking Capacity : AC100KA、DC30KA

Keyword : EV fast charger fuse

Related Standard : TUV、ISO8820、RoHS compliant、UL248

Contact Now

China famous 1000VDC HEV fuse designed for fast charger protection

Application of the 1000VDC fuse

This series of products are round-tube bolt-connected fuses, which have the characteristics of small size, fast blowing, low I2t, and high reliability. It is suitable for short-circuit and backup protection of semiconductor devices such as frequency converters, rectifiers, inverters, various power supplies, as well as power batteries, motors, capacitors, wires and other equipment and devices. This product has good anti-vibration and flame-retardant properties, and is suitable for applications in vibration environments such as rail transit and motor vehicles.

Feature of the 300 amp HEV fuse

Model

Rated Current(A)

100% voltage drop (mv)

Size code

Installation

HEV-J-Q-300

300

298

HF3

Mounting Bolt M10,

Recommend Torque: 21N.m

Material of the HEV fuse

1000VDC Fast Charger 300 Amp Bolt Type Fuse , High Voltage TUV Standard EV Fuse

Material of the HEV fuse

Part	Material
Fuse wire	Copper or Silver
End cap	Copper alloy tin plating
Fuse leg	Copper alloy tin plating
Fuse body	Ceramic Tube
Filler	Quartz sand

Packaging Quantity of 300 amp HEV fuse

HF4: 2 fuse links per plastic box.

Each long box is packed with 1 plastic box, a total of 2 fuse links, the size of the long box is 156mm long x 120mm wide x 54mm high.

Each large box contains 20 long strip boxes, a total of 40 fuse links, the size of the large box is 342mm long x 258mm wide x 285mm high.

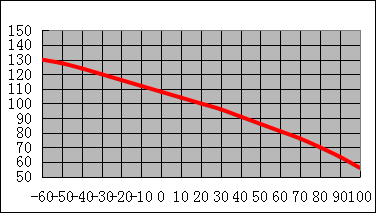

Ambient Air Temperature

FAQ

Question:Do your mini car balde fuses have UL certification?

Answer:Yes,this 32VDC mini car blade fuse approve by UL248 standard.
