Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System

Name: Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System
Brand: Dissmann
Price: 1 USD

Wholesale Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System from china suppliers

Brand Name : Dissmann

Model Number : DNN-P-250

Certification : UL

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000000pcs

Delivery Time : 5-8 days

Packaging Details : Standard Carton Packing

Color : White

Rated Voltage : DC150V

Rated Current : 250A

Type Protection : Time-lag

Breaking Capacity : DC2700A

Size : Large Size Flat Plug Fuse

Meet the Requirement : UL248-20、 ISO8820、 JASO-D622、 RoHS

Contact Now

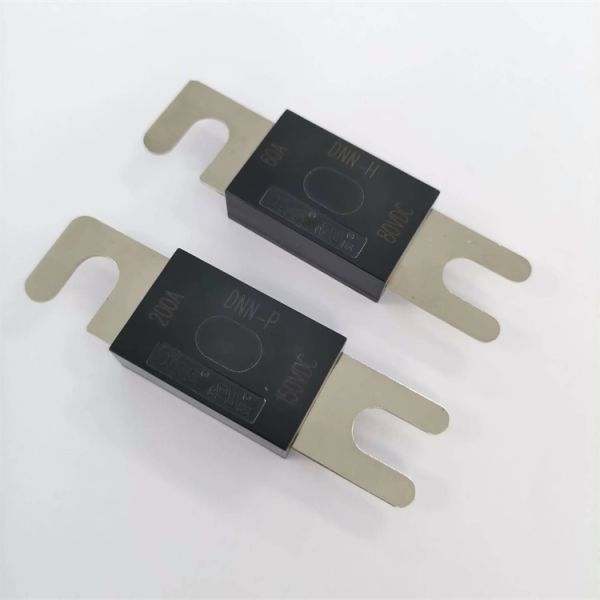

Dissmann® UL Certified DC150V 250A Flat plug Fuse Made in China

Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System

Specifications of the DNN-P series Flat Plug Fuse:

1. Dimension of the fuse:

Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System

Rated Current≤275A Rated Current ≥300A

2. Performance critiria of the DNN-P series flat plug fuse :

Load	Opening time
	10A～500A
	min	max
110%	14400	∞
160%	10	∞
200%(≤200A)	0	100
200%(＞200A)	0	300
250%(≤200A)	0	60
250%(＞200A)	0.8	120
600%	0.02	10

3.Manufacturing materials of the flat plug fuse:

Component name	Material
Contact the foot	copper alloy
Noumenon	Ceramics

4.Product type:

Model	Product code	Rated current A	Voltage drop mV	Installation requirement
DNN-P	DNN-P-35	35	130	Install bolt M8, recommended torque 10N·m ±1 N·m
	DNN-P-40	40	125
	DNN-P-50	50	120
	DNN-P-60	60	116
	DNN-P-80	80	112
	DNN-P-100	100	110
	DNN-P-125	125	105
	DNN-P-130	130	100
	DNN-P-150	150	96
	DNN-P-175	175	90
	DNN-P-200	200	86
	DNN-P-225	225	83
	DNN-P-250	250	80
	DNN-P-275	275	77
	DNN-P-300	300	75
	DNN-P-325	325	83
	DNN-P-350	350	81
	DNN-P-400	400	80
	DNN-P-425	425	78
	DNN-P-450	450	78
	DNN-P-500	500	76

5.Current characteristic curve of the flat plug fuse

Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System

5.Dissmann® Flat plug fuse, include mini size,medium size,large size:

Flat Plug UL Certified DC150V 250A Time lag Fuse For Energy Storage System

6.Other Fuses and fuse holders in our Factory:

7.Dissmann® fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.

8.Dissmann® fuse Factory Display:

Welcome you to get more information of the Automotive Blade Fuse,We will provide you with fast and efficient services and high-quality fuse products.

Product Tags:

DC150V Time Lag Fuse

Time Lag Fuse 250A

Flat Plug Ceramic Automotive Fuses
