Dissmann® DC500V Energy Storage System Fuse with Indicator
MEV-H-H63 series Fuses rated voltage AC/DC500V, the structure and performance shall comply with GB13539, IEC60269 and UL248.
MEV-H-H63 series Fuses help the battery energy storage systems packing in more power with the right protection. They are fast-acting fuse with a higher short-circuit current rating the rated current is 800A-1800A.
Specifications of the MEV-H-H63 series Energy Storage Fuse:

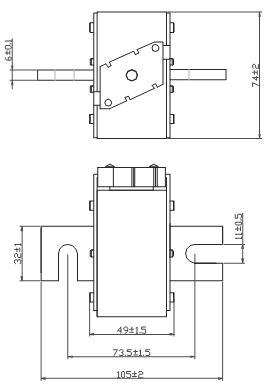

1.Shape and mounting dimensions of the MEV fuse:
2.MEV-H-H63 fuse model classification according to rated current :
| Model | Product code | Rated current A | I²t(A²Sec) | Power consumption W |
| 弧前 | 总 |
| MEV-H-H63 | MEV-H-H63-800 | 800A | 69200 | 465000 | 115 |
| MEV-H-H63-900 | 900A | 100000 | 670000 | 120 |
| MEV-H-H63-1000 | 1000A | 140000 | 945000 | 125 |
| MEV-H-H63-1100 | 1100A | 190000 | 1300000 | 130 |
| MEV-H-H63-1250 | 1250A | 280000 | 1900000 | 140 |
| MEV-H-H63-1400 | 1400A | 370000 | 2450000 | 155 |
| MEV-H-H63-1500 | 1500A | 460000 | 3100000 | 160 |
| MEV-H-H63-1600 | 1600A | 580000 | 3900000 | 160 |
| MEV-H-H63-1800 | 1800A | 880000 | 5200000 | 165 |
How to choose a right model of the battery energy storage fuse:
You can choose the right square ceramic MEV Fuse for your project based on the rated current, send us the product code to get a quick quotation. If your project requires customized MEV fuses, you can tell us the special customized requirements of the products you need, and we will give you a solution and quote you within 48 hours.
Why you choose us?
1.Focus on the production and development of fuse products for 20 years:
Shenzhen Deer Electronic(Dissmann Fuse) is National High-Tech company was founded in 2000 by Senior Engineers Team. The Engineers were responsible for products’ R&D in famous companies, reorganized and founded Shenzhen Deer in 2005. Focused on R&D and production Current limiting Fuses. Now we’ve got 4 Patents of Invention of China and 12 Patents for Utility Model.
2.All fuse products through UL, TUV, VDE, ASTA, PSB, CCC, CQC, IATF16949, ISO9001-2015, ROHS certification.
Welcome you to get more information of the battery energy storage fuse,We will provide you with fast and efficient services and high-quality fuse products.
